Alert Rules

An alert rule is a persistent condition that the evaluator checks against incoming telemetry. When a rule trips, it opens an alert; when the condition clears, the alert resolves. Rules are the engine behind the alert feed — they turn raw metrics into actionable incidents.

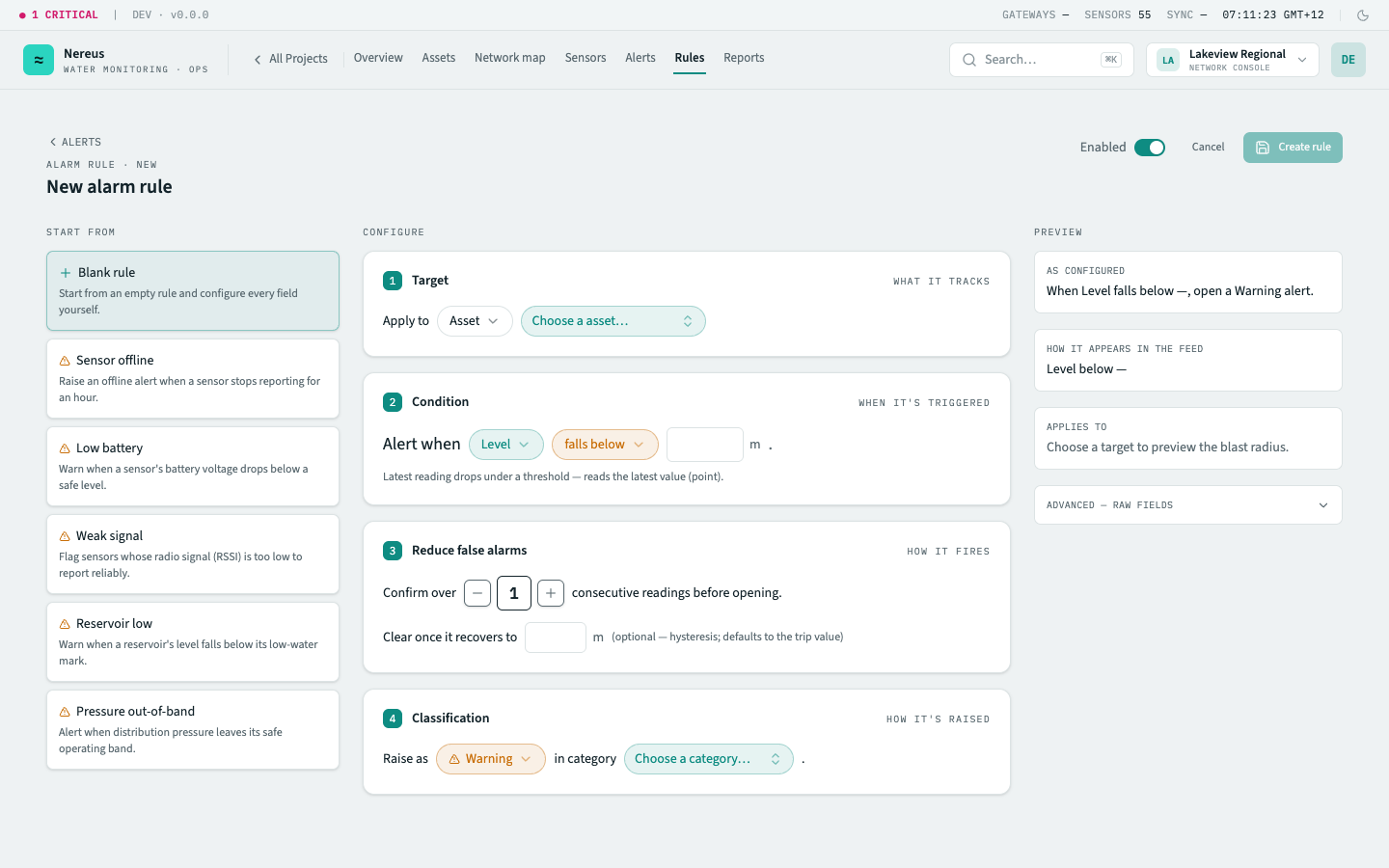

Rule builder form

Comparators

Section titled “Comparators”

A rule’s comparator decides how it tests the metric. Nereus supports seven, grouped by what they read — the latest value (a point), a trailing window, or the absence of data:

Comparator What it detects Example
lt Latest reading falls below a threshold Battery voltage below 3.4 V
gt Latest reading rises above a threshold Pressure above 700 kPa
outside_band Latest reading moves outside a low–high band Pressure outside 150–700 kPa
rate The metric changes faster than a limit over a window Level dropping more than 2 m/h
pct_over_baseline The metric exceeds a baseline by a percentage over a window Flow 40% above its baseline
min_over_window A flow’s window minimum stays above a floor — a continuous leak 24 h minimum flow above 3 L/min
stale A sensor reports no data for a window — raised as an offline alert No uplink for 6× device cadence

lt, gt, and outside_band read the latest value (a point). rate, pct_over_baseline, and min_over_window aggregate a trailing window over the continuous aggregates — min_over_window is the continuous-flow / customer-side-leak detector and is valid only for flow metrics. stale is different in kind: it fires on the absence of data (now − last_seen) rather than a value, and its alert is always surfaced as offline.

Value and band comparators use a debounce (the “confirm over N consecutive readings” clause) so transient blips don’t trigger false alarms. An optional clear value adds hysteresis — the metric must recover past it before the alert resolves (it defaults to the trip value when omitted).

Severity levels

Section titled “Severity levels”

Every rule has a severity that determines the alert’s visual prominence and notification behaviour:

CriticalWarning
Severity Meaning Example
Critical Immediate risk to infrastructure or safety Reservoir level below dead storage
Warning Anomalous reading approaching or breaching a non‑critical threshold Pressure above design capacity
Offline Sensor stopped reporting — generated by the staleness detector, not a user rule No uplink for 6× device cadence

Severity is colour‑vision‑safe: shapes and weights supplement colour so critical and warning alerts are distinguishable without relying on hue alone.

Rule lifecycle

Section titled “Rule lifecycle”

Every alert passes through five states, driven by the evaluator sweep and user action:

Rule created → Evaluator checks latest readings
  ├── Condition met (× debounce count) → Alert opens
  │     ├── User acknowledges → Alert stays open, dimmed
  │     │     └── Condition clears → Alert resolves
  │     └── Condition clears (unacknowledged) → Alert resolves
  └── Condition not met → Silent

Create — a rule is authored via the rule editor and saved. It becomes active immediately unless the Paused toggle is set. The evaluator sweep runs periodically (aligned with the telemetry pipeline) and checks every active rule against the most recent readings.

Evaluate — the evaluator loads the rule’s target asset(s) and metric, fetches the debounce window’s worth of readings, and applies the comparator. If the condition holds for the full debounce count, the rule trips.

Fire — a new alert opens with the triggering value, severity, and rule metadata. It appears in the alert feed immediately and is emailed to every member with role Operator or above (see alert notifications). If an alert already exists for the same (rule, asset) pair and is still open, the evaluator adopts it — no duplicate is created.

Acknowledge — a user clicks Acknowledge on an alert row, or acknowledges it from the Action Centre. The alert stays in the queue but is dimmed and annotated with the acknowledging user and timestamp. Acknowledgements are permanent and visible in the alert detail panel’s timeline.

Resolve — when the condition clears for the full debounce window, the evaluator resolves the alert. Resolved alerts leave the active queue but remain in the alert history table with a resolution timestamp. They cannot be reopened.

Rule scope

Section titled “Rule scope”

A rule targets one of three scopes:

Scope Coverage Example
Asset One specific asset pressure_kpa outside 150–700 kPa on the Lakeview PRV station
Class Every asset of a given class (data-driven — new assets of the class inherit it) battery_v below 3.4 V on every water meter
Group Every asset beneath a group in the hierarchy level_m low across the North Basin region

When more than one rule targets the same (asset, metric), the evaluator resolves most-specific-wins: an asset-scoped rule overrides a class-scoped one, which overrides a group-scoped one. This lets you set a broad class or group baseline (e.g. a wide pressure band for all pressure points) and tighten it for a critical asset with lower tolerances.
